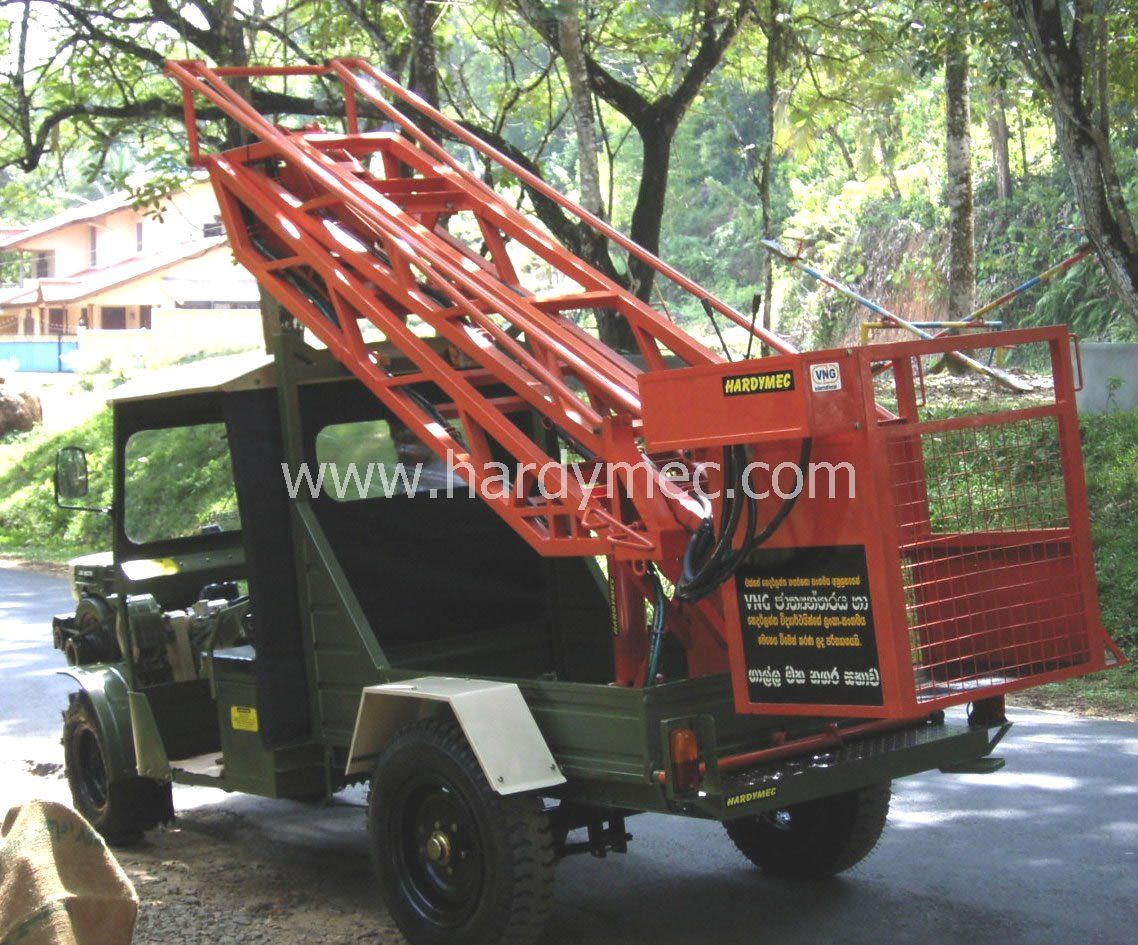

Hydrocab Aerial Hoist
HARDYMEC HYDROCAB ARIEL HOIST - TF 200
Locally designed new machine for agricultural requirements, efficient & economical maintenance of street lamps, installations of aerial electrical & communication systems, work involved in high rise buildings. The advanced design in reinforced steel construction ensures bearing of load and stability competence to international standards. This Hydrocab Hoist been mounted Hardymec Load Master innovated Hand Tractor designed and successfully introduced in Sri Lanka by SD TECHNOFAB.
- Economical & advanced structural design with maximum safety features assures high efficient and low maintenance operation.
- Heavy duty chrome plated ram & dual action hydraulic cylinder units perform maximum safety & durability.
- Simple mechanical designs ensure stability of the up-lifting Cab
- Flow control valve & hose layout designed to minimize accidental brake downs in operation.
- Electrical & mechanical control devises protect the machine & operator also minimize the supervision.
- Wind shield with wiper ensure better visibility.
- Components can be easily dismantled for the maintenance and ex-stock spares for repairs.
Other performances:

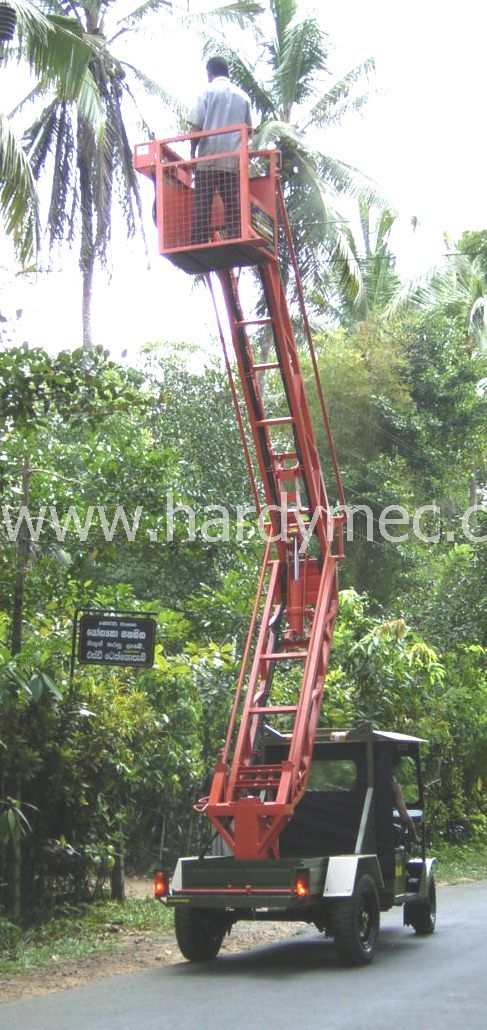

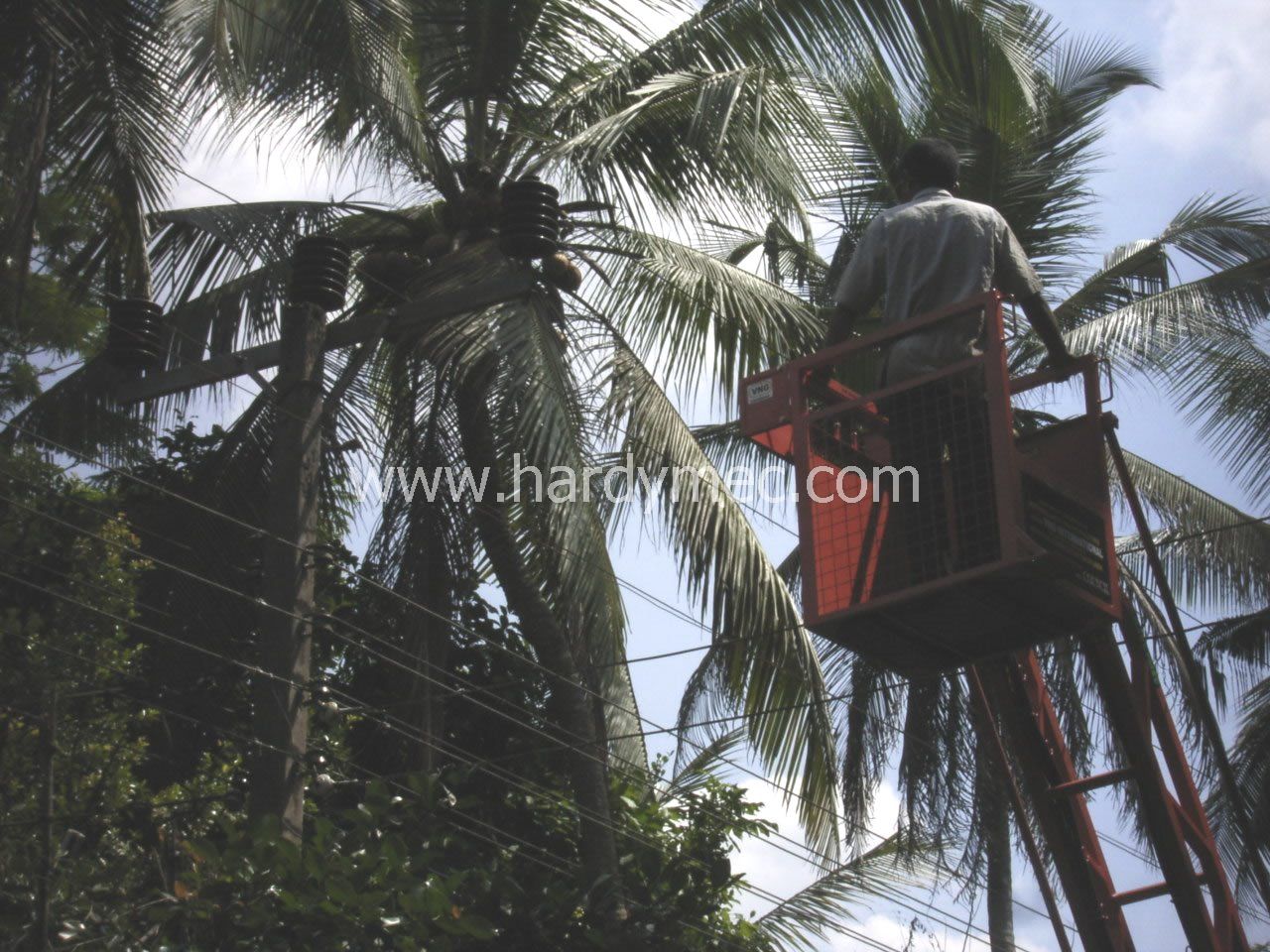

Cutting & trimming tree branches, plucking fruit & nuts, security observation, Installation, painting public sign boards & external higher walls etc.
TECHNICAL SPECIFICATIONS:
| Pay Load | 150Kg |
| Tractor Speed | 37 kph |
| Workable Height | 7.3 meter (24 feet) |
| Cab displacement from rear wheels | 2 meter (6.5 feet) |
| Cab Tuning | 90 degrees |
| Average Fuel Consumption | 0.5 to 0.75 liters per hour |
| Idling Height | 2.58 meter ( 8.5 feet) |
| Cab dimensions - L / W / H | 30” X 24” X 36” |
| Hydraulic capacity | 24 Liters |
* Request a Quotation
* Delivery : Ex- stock / 20 days. In 20 days from the confirmed order with Terms of Payment.
