Load Master Tractors

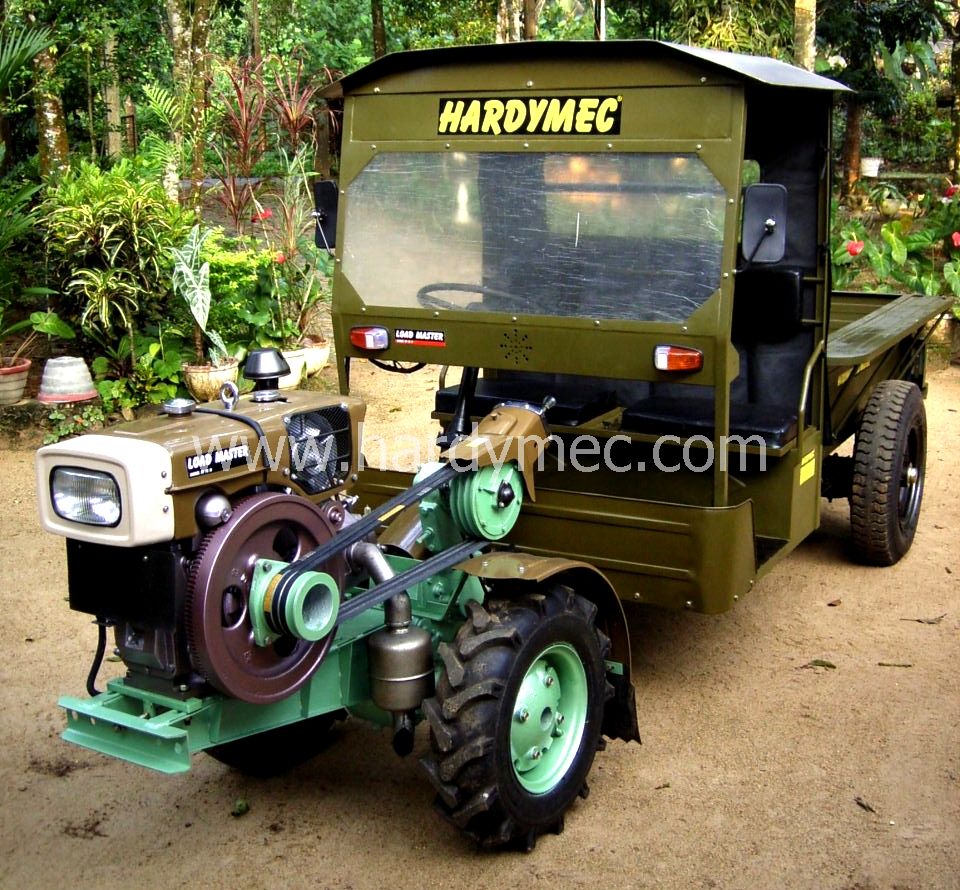

HARDYMEC LOAD MASTER - ZF 12 II
Innovated Tractor is an efficient & economical application in the field of agricultural and material transportation this would greatly reduce the cost of transportation with extra options as self trailer dumping facility, 37 km/h moving speed while ensuring highly efficient performances.
TECHNICAL SPECIFICATIONS:| Type | 4 x 2 Front Wheel Drive |
| Engine horse Power | 12 - Single Cylinder (Diesel) / Radiator cooling & Self-Starter |
| Pay load | 1250 kg |
| Gross Vehicle Weight | 1200 kg |
| Engine Capacity | 815 C.C |
| Seating Capacity | 2 Persons (Cabin) |
| Tyre Front | 6.00 x 12 |
| Tyre Rear | 6.50 x 16 |
| Ground clearance (Min) | 200 mm |
| Climbing angle (Max) | 20 Degrees |
| Turning circle diameter (Min) | 4650 mm |
| Dumping angle (Max) | 45 Degrees |
| Overall Dimension | 4700 L x 1500 W x 1900 H mm |
| Wheel base / Overrun | 2720 / 1030 mm |
| Wheel Track Front | 800 mm |
| Wheel Track Rear | 1300 mm |
| Nominal speed | 37 km / h |
| Gear system | Compact box, 6 - Forward, 2 - Reverse (Change on move) |
| Suspension | Leaf spring (7 piece set) & Shock-absorber |
| Brake | Hydraulic pedal with Mechanical parking brake (Drum Dia. 280mm) |
| Steering | Bow type with heavy-duty box (20:01 Ratio) |
| Fuel consumption (Average) | 20 Km / Litre |
| Fuel Tank capacity | 12 Litres |
* Request a Quotation
* Delivery : Ex- stock / 20 days. In 20 days from the confirmed order with Terms of Payment.
